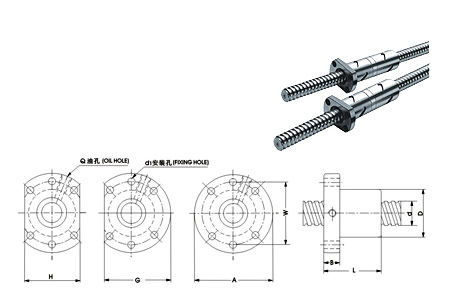

| MODEL
NO. |
MAIN
DIMENSIONS |
MOUNTING DIMENSION |
BASIC LOAD RATING |
RIGIDITY(kgf/um) |
| SCREW DIAMETER |
THREAD DISTANCE |
BALL DIAMETER |
NUT OUTER DIAMETER |
BALL CIRCULATION NUMBER |
Q |
A |
G |
H |
L |
B |
W |
d1 |
C(kgf) |
Co(kgf) |
| d |
s |
Da |
D |
n |
K |
| DF1605-4 |
16 |
5 |
3.175 |
28 |
4 |
M6 |
48 |
44 |
40 |
100 |
10 |
38 |
5.5 |
780 |
1790 |
36 |
| DF2005-4 |
20 |
5 |
3.175 |
36 |
4 |
M6 |
58 |
51 |
44 |
101 |
10 |
47 |
6.6 |
1130 |
2380 |
52 |
| DF1505-4 |
25 |
5 |
3.175 |
40 |
4 |
M8 |
62 |
55 |
48 |
101 |
10 |
51 |
6.6 |
1280 |
3110 |
64 |
| DF3205-4 |
32 |
5 |
3.175 |
50 |
4 |
M8 |
80 |
71 |
62 |
102 |
12 |
65 |
9 |
1450 |
4150 |
80 |
| DF3210-4 |
10 |
6.35 |
50 |
4 |
M8 |
80 |
71 |
62 |
162 |
12 |
65 |
9 |
3390 |
7170 |
79 |
| DF4005-4 |
40 |
5 |
3.175 |
63 |
4 |
M8 |
93 |
81.5 |
70 |
105 |
14 |
78 |
9 |
1610 |
5350 |
98 |
| DF4010-4 |
10 |
6.35 |
63 |
4 |
M8 |
93 |
81.5 |
70 |
165 |
14 |
78 |
9 |
3910 |
9520 |
99 |
| DF5010-4 |
50 |
10 |
6.35 |
75 |
4 |
M8 |
110 |
97.5 |
85 |
171 |
16 |
93 |
11 |
4450 |
12500 |
122 |
| DF6310-4 |
63 |
10 |
6.35 |
90 |
4 |
M8 |
125 |
100 |
95 |
182 |
18 |
108 |
11 |
5070 |
16600 |
154 |
| DF8010-4 |
80 |
10 |
6.35 |
105 |
4 |
M8 |
145 |
127.5 |
110 |
182 |
20 |
125 |
13.5 |
5620 |
21300 |
187 |
|
