1 FLANGED LINEAR BEARING
STANDARD TYPE PILOT PATTERN TYPE
LONG TYPE CENTERED TYPE
1STANDARD TYPE

LMF TYPE
KBF TYPE
SWF TYPE

LMK TYPE
KBK TYPE
SWK TYPE

LMT TYPE

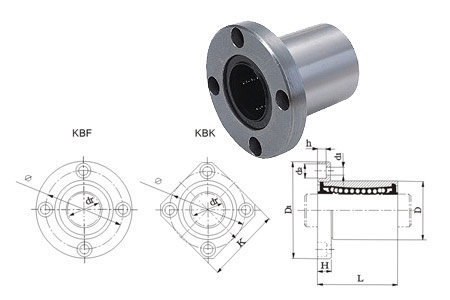

KBF TYPE
MODEL NO. NUMBER OF BALL ROWS MAIN DIMENSIONS SQUA-RENESS ECCEN-TIRICITY(MAX.) BASIC LOAD RATING
INSCRIBED CIRCLE OUTER DIAMETER LENGTH FLANGE HOLE FOR ATTACHMENT c(kgf) Co(kgf)
dr TOLE-RANCE D TOLE-RANCE L TOLE-RANCE D1 K H Φ d1 d2 h
KBF5 4 5

+0.008

12

0

-0.008

22

0

-0.20

28 22 5 20 3.5 6 3.1 0.012 0.012 21 27
KBF8 4 8 16 25 32 25 5 24 3.5 6 3.1 27 41
KBF10 4 10 19

0

-0.009

29 40 30 6 29 4.5 7.5 4.1 38 56
KBF12 4 12 22 32 42 32 6 32 4.5 7.5 4.1 52 80
KBF16 5 16

+0.009

-0.001

26 36 46 35 6 36 4.5 7.5 4.1 59 91
KBF20 5 20 32

0

-0.011

45 54 42 8 43 5.5 9 5.1 0.015 0.015 88 140
KBF25 6 25

+0.011

-0.001

40 58

0

-0.30

62 50 8 51 5.5 9 5.1 100 160
KBF30 6 30 47 68 76 60 10 62 6.6 11 6.1 160 280
KBF40 6 40

+0.013

-0.012

62

0

-0.013

80 98 75 13 80 9 14 8.1 0.017 0.017 220 410
KBF50 6 50 75 100 112 88 13 94 9 14 8.1 390 810
KBF60 6 60 90

0

-0.015

125

0

-0.40

134 106 18 112 11 17.5 10.8 0.020 0.020 480 1000
