1 FLANGED LINEAR BEARING
STANDARD TYPE PILOT PATTERN TYPE
LONG TYPE CENTERED TYPE
1LONG TYPE

LMF-L TYPE
KBF-L TYPE
SWF-L TYPE

LMK-L TYPE
KBK-L TYPE
SWK-L TYPE

LMT-L TYPE

LMF(K)P-L TYPE

LMTP-L TYPE
LMT-L TYPE

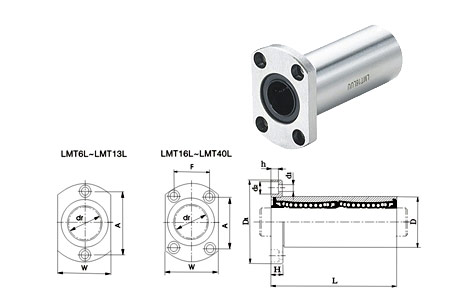

MODEL NO. NUMBER OF BALL ROWS MAIN DIMENSIONS SQUA-RENESS ECCEN-TIRICITY(MAX.) BASIC LOAD RATING
INSCRIBED CIRCLE OUTER DIAMETER LENGTH FLANGE HOLE FOR ATTACHMENT c(kgf) Co(kgf)
dr TOLE-RANCE D TOLE-RANCE L TOLE-RANCE D1 W H A F d1 d2 h
LMT6L 4 6

-0

-0.01

12

-0

-0.013

35

0

-0.30

28 18 5 20 3.5 6 3.1 0.015 0.015 33 54
LMT8L 4 8 15 45 32 21 5 24 3.5 6 3.1 44 80
LMT10L 4 10 19

-0

-0.016

55 40 25 6 29 4.5 7.5 4.1 60 112
LMT12L 4 12 21 57 42 27 6 32 4.5 7.5 4.1 67 122
LMT13L 4 13 23 61 43 29 6 33 4.5 7.5 4.1 83 160
LMT16L 5 16 28 70 48 34 6 31 22 4.5 7.5 4.1 125 240
LMT20L 5 20

-0

-0.012

32

-0

-0.019

80 54 38 8 36 24 5.5 9 5.1 0.02 0.02 143 280
LMT25L 6 25 40 112

0

-0.40

62 46 8 40 32 5.5 9 5.1 159 320
LMT30L 6 30 45 123 74 51 10 49 35 6.6 11 6.1 254 560
