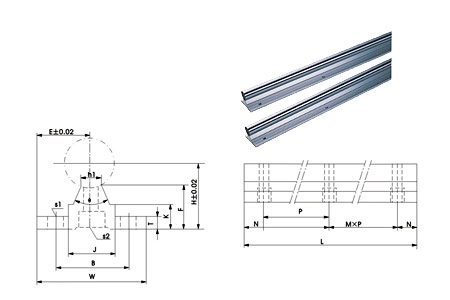

*LINEAR　BEARING *MINI TYPE BEARING *SUPER LINEAR BEARING *FLANGED LINEAR BEARING *LINEAR CASE UNITS *SHAFT SUPPORTS *SHAFT *SUPPORT RAIL UNIT *BALL SCREW *LINEAR MOTION GUIDE *OVERRUNNING CLUTCH *ROD END SUPPORT RAIL UNIT TBR TYPE SBR TYPE SBR TYPE MODEL NO. SHAFT DIAMETER MAIN DIMENSIONS MOUNTING DIMENSION WEIGHT(kg) H E W L F T K J h1 θ B N M × P S1 S2 SA10-200 10 18 16 32 200 13.5 4 8.9 12.4 4.7 80° 22 50 1×100 4.5 M4 0.110 SA10-300 300 50 2×100 0.160 SA10-400 400 50 3×100 0.220 SA10-500 500 50 4×100 0.270 SA10-600 600 50 5×100 0.330 SA12-200 12 20.46 17 34 200 15 4.5 9.8 15 6 80° 25 50 1×100 4.5 M4 0.140 SA12-300 300 50 2×100 0.210 SA12-400 400 50 3×100 0.280 SA12-500 500 50 4×100 0.350 SA12-600 600 50 5×100 0.420 SA13-200 13 21 17 34 200 15 4.5 9.8 15 6 80° 25 50 1×100 4.5 M4 0.140 SA13-300 300 50 2×100 0.210 SA13-400 400 50 3×100 0.280 SA13-500 500 50 4×100 0.350 SA13-600 600 50 5×100 0.420 SA16-200 16 25 20 40 200 17.8 5 11.7 18.5 8 80° 30 25 1×100 5.5 M5 0.200 SA16-300 300 75 1×100 0.300 SA16-400 400 50 2×100 0.400 SA16-500 500 25 3×100 0.500 SA16-600 600 75 3×100 0.600 SA20-200 20 27 22.5 45 200 17.7 5 10 19 8 50° 30 25 1×100 5.5 M6 0.200 SA20-300 300 75 1×100 0.300 SA20-400 400 50 2×100 0.400 SA20-500 500 25 3×100 0.510 SA20-600 600 75 3×100 0.610 SA25-200 25 33 27.5 55 200 21 6 12 21.5 8 50° 35 25 1×100 6.5 M6 0.290 SA25-300 300 50 1×100 0.430 SA25-400 400 100 1×100 0.580 SA25-500 500 50 2×100 0.730 SA25-600 600 100 2×100 0.880 SA30-200 30 37 30 60 200 22.8 7 13 26.5 10.3 50° 40 25 1×150 6.5 M8 0.360 SA30-300 300 50 1×200 0.550 SA30-400 400 100 1×200 0.730 SA30-500 500 50 2×200 0.920 SA30-600 600 100 2×200 1.100 SA35-200 35 43 32.5 65 200 26.5 8 15.5 28 13 50° 45 25 1×150 9 M8 0.460 SA35-300 300 50 1×200 0.700 SA35-400 400 100 1×200 0.950 SA35-500 500 50 2×200 1.190 SA35-600 600 100 2×200 1.420 SA40-200 40 48 37.5 75 200 29.4 9 17 38 15.5 50° 55 25 1×150 9 M8 0.630 SA40-300 300 75 1×150 0.960 SA40-400 400 50 1×300 1.290 SA40-500 500 100 1×300 1.610 SA40-600 600 150 1×300 1.950 SA50-200 50 62 47.5 95 200 38.8 11 21 45 20 50° 70 25 1×150 11 M10 1.000 SA50-300 300 75 1×150 1.500 SA50-400 400 50 1×300 2.000 SA50-500 500 100 1×300 2.50 SA50-600 600 150 1×300 3.00
