1 LINEAR CASE UNITS

SMA TYPE
KBA TYPE
SWA TYPE

SMA-OP TYPE
KBA-OP TYPE
SWA-OP TYPE
1KBA-OP TYPE
KBB-OP KBE
KBE TYPE

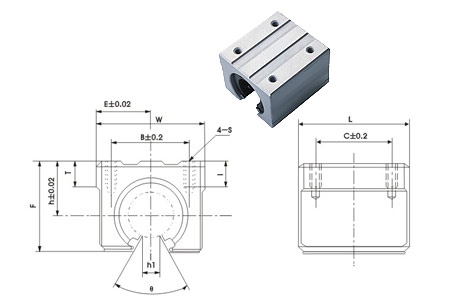

MODEL NO. SHAFT DIAMETER MAIN DIMENSIONS MOUNTING DIMENSIONS BASIC LOAD RATING WEIGHT(kg)
B C S l c(kgf) Co(kgf)
h E W L F T h1 θ
KBE10 10 15 18 36 32 24 7 6 80° 25 20 M5 10 38 56 0.065
KBE12 12 17 20 40 39 27.6 8 8.5 80° 28 26 M5 10 52 79 0.10
KBE16 16 20 22.5 45 45 33 9 10 80° 32 30 M5 10 59 91 0.15
KBE20 20 23 24 48 50 39 11 10 60° 35 35 M6 12 88 140 0.20
KBE25 25 27 30 60 65 47 14 11.5 60° 40 40 M6 12 100 160 0.45
KBE30 30 33 35 70 70 56 15 14 60° 50 50 M8 18 160 280 0.63
KBE40 40 42 45 90 90 72 20 19 60° 65 65 M10 20 220 410 1.33
KBE50 50 53 60 120 110 92 25 23 60° 94 80 M10 20 390 810 3.00
