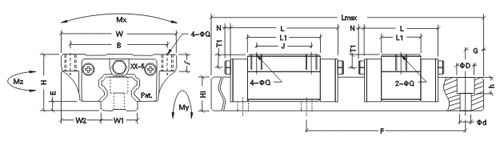

| MODEL NO. |
Assembled Dimension |
Seat Dimension(mm) |
Track Dimension(mm) |
| H |
W |
W2 |
E |
L |
BXJ |
øQX& |
L1 |
Hole of oil |
T1 |
N |
W1 |
H1 |
F |
dXDXh |
| HLS20CS |
28 |
59 |
19.5 |
5 |
57 |
49 |
ø5.7x7 |
28 |
M6X1 |
5 |
6.5 |
20 |
18 |
60 |
6X9.5X8.5 |
| HLS25C |
33 |
73 |
25 |
7 |
88 |
60X35 |
ø7x9 |
57 |
M6X1 |
4.8 |
6.5 |
23 |
22 |
60 |
7X11X9 |
| HLS25CS |
62.5 |
60 |
31.5 |
| MODEL NO. |
(mm) |
Basic Loas Rating |
(kgf*m) |
Weight |
| Lmax |
G) |
C(kgf) |
Co(G) |
Mx |
My |
Mz |
Block(kgf) |
Track(kgf/M) |
| HLS20CS |
4000 |
20 |
830 |
1470 |
12.6 |
10.3 |
10.3 |
0.17 |
2.6 |
| HLS25C |
4000 |
20 |
2140 |
4000 |
36 |
32 |
31 |
0.5 |
3.6 |
| HLS25CS |
1190 |
2230 |
20 |
17.5 |
17.2 |
0.33 |
|
