1 LINEAR BEARING
LM TYPE KB TYPE SW TYPE
1SW TYPE
SW SW-AJ SW-OP SW-L
SW-OP TYPE

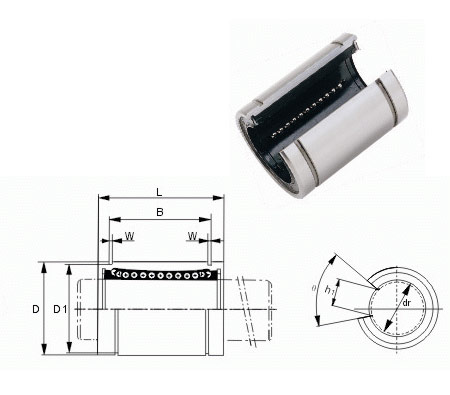

MODEL NO. NUMBER OF BALL MAIN DIMENSIONS ECCEN-TRICITY BASIC LOAD RATING
INSCRIBED CIRCLE OUTER DIAMETER LENGTH OUT LOCKING GROOVE

W

h1
θ
c(kgf) Co(kgf)
dr

TOLE-RANCE

D TOLE-RANCE L TOLE-RANCE
B
TOLE-RANCE

D1

SW08OP 3

1/2 ˝
12.7

0

-0.009

0.875 ˝
22.225

0

-0.013

1.25 ˝
31.75

0

-0.20

0.9625˝
24.46

0

-0.20

0.8209 ˝ 20.853

0.0459 ˝
1.168

0.34˝
7.9375

80°
0.012 52 80
SW10OP 3

5/8 ˝
15.875

1.125 ˝
28.575

1.5 ˝ 38.1

1.1039 ˝
28.04

1.059 ˝
26.899

0.0559 ˝
1.422

0.375˝
9.525

80°
79 120
SW12OP 4

3/4 ˝
19.05

0

-0.010

1.25 ˝ 31.75

0

-0.016

1.625 ˝ 41.275

1.1657 ˝
29.61

1.176 ˝
29.87

0.0559 ˝
1.422

0.4375˝
11.1125

60°
0.015 88 140
SW16OP 4

1 ˝
25.4

1.5625 ˝
9.688

2.25 ˝
57.15

0

-0.30

1.7547 ˝
44.57

0

-0.30

1.4687 ˝
37.306

0.0679 ˝
1.727

0.5625˝
14.2875

50° 100 160
SW20OP 5

1-1/4 ˝ 31.75

0

-0.012

2 ˝
50.8

0

-0.019

2.625 ˝ 66.675

2.0047 ˝
50.92

1.8859 ˝
47.904

0.0679 ˝
1.727

0.625 ˝

15.875

50° 0.020 160 280
SW24OP 5

1-1/2 ˝
38.1

2.375 ˝
60.325

3 ˝ 76.2

2.4118 ˝
61.26

2.2389 ˝
56.87

0.0859 ˝
2.184

0.75 ˝
19.05

50° 220 410
SW32OP 5

2 ˝ 50.8

3 ˝ 76.2

0

-0.022

4 ˝ 101.6

3.1917 ˝
81.07

2.8379 ˝ 72.085

0.1029 ˝
2.616

1 ˝
25.4

50° 0.025 390 810
