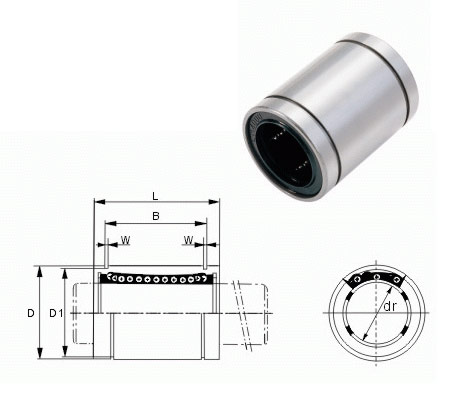

| MODEL NO. |
NUMBER
OF BALL |
MAIN DIMENSIONS |
ECCEN-TRICITY |
BASIC LOAD RATING |
| INSCRIBED CIRCLE |
OUTER
DIAMETER |
LENGTH |
OUT
LOCKING GROOVE |
W |
c(kgf) |
Co(kgf) |
| dr |
TOLE-RANCE |
D |
TOLE-RANCE |
L |
TOLE-RANCE |
B |
TOLE-RANCE |
D1 |
| SW04 |
4 |
1/4 ˝ 6.35 |
0
-0.009 |
0.5 ˝ 12.7 |
0
-0.011 |
0.75 ˝19.05 |
0
-0.20 |
0.511 ˝12.98 |
0
-0.20 |
0.4687 ˝ 11.906 |
0.039 ˝0.992 |
0.012 |
21 |
27 |
|
0
-0.013 |
| SW06 |
4 |
3/8 ˝9.525 |
0.625 ˝15.875 |
0.875 ˝ 22.225 |
0.6385 ˝ 16.15 |
0.588 ˝ 14.935 |
0.039 ˝0.992 |
23 |
32 |
| SW08 |
4 |
1/2 ˝12.7 |
0.875 ˝22.225 |
1.25 ˝31.75 |
0.9625 ˝ 24.46 |
0.8209 ˝ 20.853 |
0.0459 ˝ 1.168 |
52 |
80 |
| SW10 |
4 |
5/8 ˝ 15.875 |
1.125 ˝28.575 |
1.5 ˝ 38.1 |
1.1039 ˝ 28.04 |
1.059 ˝ 26.899 |
0.0559 ˝ 1.422 |
79 |
120 |
| SW12 |
5 |
3/4 ˝ 19.05 |
0
-0.010 |
1.25 ˝ 31.75 |
0
-0.016 |
1.625 ˝ 41.275 |
1.1657 ˝ 29.61 |
1.176 ˝29.87 |
0.0559 ˝ 1.422 |
0.015 |
88 |
140 |
| SW16 |
5 |
1 ˝ 25.4 |
1.5625 ˝ 39.688 |
2.25 ˝57.15 |
0
-0.30 |
1.7547 ˝ 44.57 |
0
-0.30 |
1.4687 ˝ 37.306 |
0.0679 ˝ 1.727 |
100 |
160 |
| SW20 |
6 |
1-1/4 ˝ 31.75 |
0
-0.012 |
2 ˝ 50.8 |
0
-0.019 |
2.625 ˝ 66.675 |
2.0047 ˝ 50.92 |
1.8859 ˝ 47.904 |
0.0679 ˝ 1.727 |
0.020 |
160 |
280 |
| SW24 |
6 |
1-1/2 ˝ 38.1 |
2.375 ˝60.325 |
3 ˝ 76.2 |
2.4118 ˝ 61.26 |
2.2389 ˝ 56.87 |
0.0859 ˝ 2.184 |
220 |
410 |
| SW32 |
6 |
2 ˝ 50.8 |
3 ˝ 76.2 |
0
-0.022 |
4 ˝ 101.6 |
3.1917 ˝ 81.07 |
2.8379 ˝ 72.085 |
0.1029 ˝ 2.616 |
0.025 |
390 |
810 |
|
