1 LINEAR CASE UNITS

SMA TYPE
KBA TYPE
SWA TYPE

SMA-OP TYPE
KBA-OP TYPE
SWA-OP TYPE
1SMA TYPE
SMA SMA-AJ SMA-S SMA-L

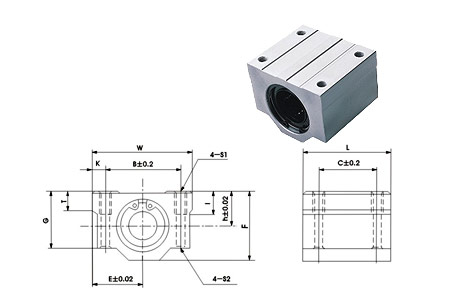

SMA TYPE
MODEL NO. SHAFT DIAMETER MAIN DIMENSIONS MOUNTING DIMENSIONS WEIGHT(kg)
h E W L F G T
B
C
K
S1
S2
l
SMA8 8 11 17 34 30 22 18 6 24 18 5 M4 3.4 8 0.052
SMA10 10 13 20 40 35 26 21 8 28 21 6 M5 4.3 12 0.092
SMA12 12 15 21 42 36 28 24 8 30.5 26 5.75 M5 4.3 12 0.102
SMA13 13 15 22 44 39 30 24.5 8 33 26 5.5 M5 4.3 12 0.12
SMA16 16 19 25 50 44 38.5 32.5 9 36 34 7 M5 4.3 12 0.2
SMA20 20 21 27 54 50 41 35 11 40 40 7 M6 5.2 12 0.255
SMA25 25 26 38 76 67 51.5 42 12 54 50 11 M8 7 18 0.6
SMA30 30 30 39 78 72 59.5 49 15 58 58 10 M8 7 18 0.735
SMA35 35 34 45 90 80 68 54 18 70 60 10 M8 7 18 1.1
SMA40 40 40 51 102 90 78 62 20 80 60 11 M10 8.7 25 1.59
SMA50 50 52 61 122 110 102 80 25 100 80 11 M10 8.7 25 3.34
SMA60 60 58 66 132 122 114 94 30 108 90 12 M12 10.7 25 4.72
