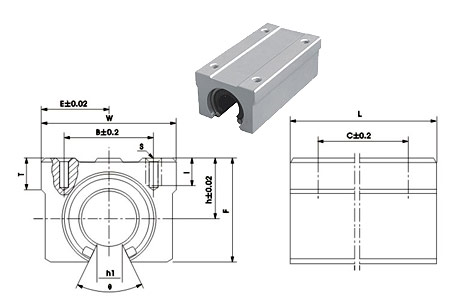

| MODEL
NO. |
SHAFT
DIAMETER |
MAIN
DIMENSIONS |
MOUNTING
DIMENSIONS |
WEIGHT(kg) |
| B |
C |
S |
l |
| h |
E |
W |
L |
F |
T |
h1 |
θ |
| SME16L |
16 |
20 |
22.5 |
45 |
85 |
33 |
9 |
10 |
80° |
32 |
60 |
M5 |
12 |
0.29 |
| SME20L |
20 |
23 |
24 |
48 |
96 |
39 |
11 |
10 |
80° |
35 |
70 |
M6 |
12 |
0.51 |
| SME25L |
25 |
27 |
30 |
60 |
130 |
47 |
14 |
11.5 |
80° |
40 |
100 |
M6 |
12 |
0.98 |
| SME30L |
30 |
33 |
35 |
70 |
140 |
56 |
15 |
14 |
80° |
50 |
110 |
M8 |
18 |
1.45 |
| SME40L |
40 |
42 |
45 |
90 |
175 |
72 |
20 |
19 |
80° |
65 |
140 |
M10 |
20 |
2.48 |
|
