1 FLANGED LINEAR BEARING
STANDARD TYPE PILOT PATTERN TYPE
LONG TYPE CENTERED TYPE
1CENTERED TYPE

LMF(K)C-L TYPE

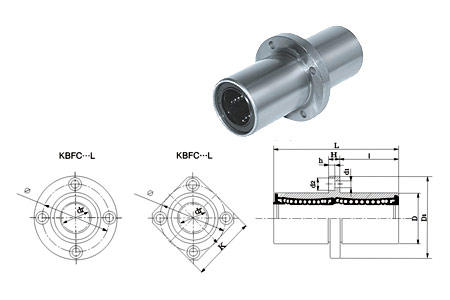

KBF(K)C-L TYPE
SWF(K)C-L TYPE

LMTC-L TYPE
KBFC-L TYPE
MODEL NO. NUMBER OF BALL ROWS MAIN DIMENSIONS SQUA-RENESS ECCEN-TIRICITY(MAX.) BASIC LOAD RATING
INSCRIBED CIRCLE OUTER DIAMETER LENGTH I FLANGE HOLE FOR ATTACHMENT c(kgf) Co(kgf)
dr TOLE-RANCE D TOLE-RANCE L TOLE-RANCE D1 K H Φ d1 d2 h
KBFC8L 4 8

+0.009

-0.001

16

0

-0.009

46

±0.30

20.5 32 25 5 24 3.5 6 3.1 0.015 0.015 43 82
KBFC12L 4 12 22

0

-0.011

61

0

-0.30

27.5 42 32 6 32 4.5 7.5 4.1 83 160
KBFC16L 5 16

+0.011

-0.001

26 68 31 46 35 6 36 4.5 7.5 4.1 94 182
KBFC20L 5 20 32

0

-0.013

80 36 54 42 8 43 5.5 9 5.1 0.017 0.017 140 280
KBFC25L 6 25

+0.013

-0.002

40 112

0

-0.40

52 62 50 8 51 5.5 9 5.1 160 320
KBFC30L 6 30 47 123 56.5 76 60 10 62 6.6 11 6.1 225 560
KBFC40L 6 40

+0.016

-0.004

62

0

-0.015

151 69 98 75 13 80 9 14 8.1 0.02 0.02 350 820
KBFC50L 6 50 75 192 89.5 112 88 13 94 9 14 8.1 620 1622
KBFC60L 6 60 90

0

-0.020

209 95.5 134 106 18 112 11 17 11.1 0.025 0.025 770 2040
