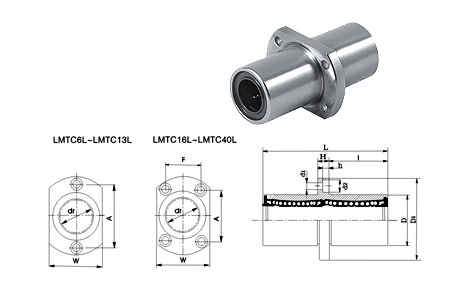

FLANGED LINEAR BEARING |
| |
|
| CENTERED TYPE |
| |
|
| LMTC-L TYPE |
 |
| MODEL
NO. |
NUMBER OF BALL ROWS |
MAIN
DIMENSIONS |
SQUA-RENESS |
ECCEN-TIRICITY(MAX.) |
BASIC LOAD
RATING |
| INSCRIBED CIRCLE |
OUTER DIAMETER |
LENGTH |
I |
FLANGE |
HOLE FOR ATTACHMENT |
c(kgf) |
Co(kgf) |
| dr |
TOLE-RANCE |
D |
TOLE-RANCE |
L |
TOLE-RANCE |
D1 |
w |
H |
A |
F |
d1 |
d2 |
h |
| LMTC6L |
4 |
6 |
-0
-0.01 |
12 |
-0
-0.013 |
35 |
0
-0.30 |
15 |
28 |
18 |
5 |
20 |
|
3.5 |
6 |
3.1 |
0.015 |
0.015 |
33 |
54 |
| LMTC8L |
4 |
8 |
15 |
45 |
20 |
32 |
21 |
5 |
24 |
|
3.5 |
6 |
3.1 |
44 |
80 |
| LMTC10L |
4 |
10 |
19 |
-0
-0.016 |
55 |
24.5 |
40 |
25 |
6 |
29 |
|
4.5 |
7.5 |
4.1 |
60 |
112 |
| LMTC12L |
4 |
12 |
21 |
57 |
25.5 |
42 |
27 |
6 |
32 |
|
4.5 |
7.5 |
4.1 |
67 |
122 |
| LMTC13L |
4 |
13 |
23 |
61 |
27.5 |
43 |
29 |
6 |
33 |
|
4.5 |
7.5 |
4.1 |
83 |
160 |
| LMTC16L |
5 |
16 |
28 |
70 |
32 |
48 |
34 |
6 |
31 |
22 |
4.5 |
7.5 |
4.1 |
125 |
240 |
| LMTC20L |
5 |
20 |
-0
-0.012 |
32 |
-0
-0.019 |
80 |
36 |
54 |
38 |
8 |
36 |
24 |
5.5 |
9 |
5.1 |
0.02 |
0.02 |
143 |
280 |
| LMTC25L |
6 |
25 |
40 |
112 |
0
-0.40 |
52 |
62 |
46 |
8 |
40 |
32 |
5.5 |
9 |
5.1 |
159 |
320 |
| LMTC30L |
6 |
30 |
45 |
123 |
56.5 |
74 |
51 |
10 |
49 |
35 |
6.6 |
11 |
6.1 |
254 |
560 |
|
