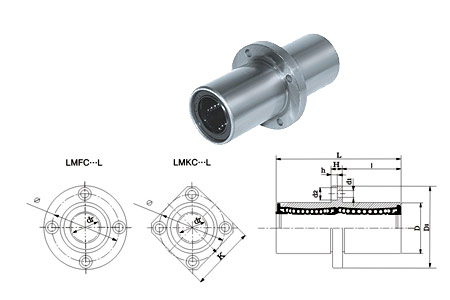

FLANGED LINEAR BEARING |
| |
|
| CENTERED TYPE |
|
|
|
| LMFC-L TYPE |
 |
| MODEL
NO. |
NUMBER OF BALL ROWS |
MAIN
DIMENSIONS |
SQUA-RENESS |
ECCEN-TIRICITY(MAX.) |
BASIC LOAD
RATING |
| INSCRIBED CIRCLE |
OUTER DIAMETER |
LENGTH |
I |
FLANGE |
HOLE FOR ATTACHMENT |
c(kgf) |
Co(kgf) |
| dr |
TOLE-RANCE |
D |
TOLE-RANCE |
L |
TOLE-RANCE |
D1 |
K |
H |
Φ |
d1 |
d2 |
h |
| LMFC6L |
4 |
6 |
-0
-0.01 |
12 |
-0
-0.013 |
35 |
0
-0.30 |
15 |
28 |
22 |
5 |
20 |
3.5 |
6 |
3.1 |
0.015 |
0.015 |
33 |
54 |
| LMFC8L |
4 |
8 |
15 |
45 |
20 |
32 |
25 |
5 |
24 |
3.5 |
6 |
3.1 |
44 |
80 |
| LMFC10L |
4 |
10 |
19 |
-0
-0.016 |
55 |
24.5 |
40 |
30 |
6 |
29 |
4.5 |
7.5 |
4.1 |
60 |
112 |
| LMFC12L |
4 |
12 |
21 |
57 |
25.5 |
42 |
32 |
6 |
32 |
4.5 |
7.5 |
4.1 |
83 |
160 |
| LMFC13L |
4 |
13 |
23 |
61 |
27.5 |
43 |
34 |
6 |
33 |
4.5 |
7.5 |
4.1 |
83 |
160 |
| LMFC16L |
5 |
16 |
28 |
70 |
32 |
48 |
37 |
6 |
38 |
4.5 |
7.5 |
4.1 |
126 |
240 |
| LMFC20L |
5 |
20 |
-0
-0.012 |
32 |
-0
-0.019 |
80 |
36 |
54 |
42 |
8 |
43 |
5.5 |
9 |
5.1 |
0.02 |
0.02 |
143 |
280 |
| LMFC25L |
6 |
25 |
40 |
112 |
0
-0.40 |
52 |
62 |
50 |
8 |
51 |
5.5 |
9 |
5.1 |
159 |
320 |
| LMFC30L |
6 |
30 |
45 |
123 |
56.5 |
74 |
58 |
10 |
60 |
6.6 |
11 |
6.1 |
254 |
560 |
| LMFC35L |
6 |
35 |
-0
-0.015 |
52 |
-0
-0.022 |
135 |
62.5 |
82 |
64 |
10 |
67 |
6.6 |
11 |
6.1 |
0.025 |
0.025 |
270 |
640 |
| LMFC40L |
6 |
40 |
60 |
151 |
69 |
96 |
75 |
13 |
78 |
9 |
14 |
8.1 |
350 |
820 |
| LMFC50L |
6 |
50 |
80 |
192 |
89.5 |
116 |
92 |
13 |
98 |
9 |
14 |
8.1 |
620 |
1622 |
| LMFC60L |
6 |
60 |
-0
-0.02 |
90 |
-0
-0.025 |
209 |
95.5 |
134 |
106 |
18 |
112 |
11 |
17.5 |
10.8 |
770 |
2040 |
|
