1 LINEAR BEARING
LM TYPE KB TYPE SW TYPE
1KB TYPE
KB KB-AJ KB-OP KB-L
KB(m) KBS
KB-OP TYPE

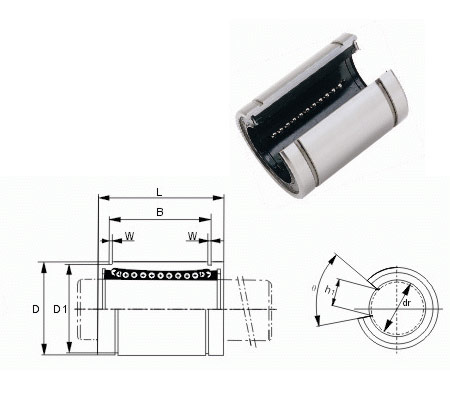

MODEL NO. NUMBER OF BALL MAIN DIMENSIONS ECCEN-TRICITY BASIC LOAD RATING
INSCRIBED CIRCLE OUTER DIAMETER LENGTH OUT LOCKING GROOVE W h1
θ
c(kgf) Co(kgf)
dr TOLE-RANCE D TOLE-RANCE L TOLE-RANCE B TOLE-RANCE D1
KB10OP 3 10

+0.008

0

19

0

-0.009

29

0

-0.20

22

0

-0.20

18 1.3 6.8 80° 0.012 38 47
KB12OP 3 12 22 32 22.9 21 1.3 8 78° 52 79
KB16OP 4 16

+0.009

-0.001

26 36 24.9 24.9 1.3 10.8 78° 59 91
KB20OP 4 20 32

0

-0.011

45 31.5 30.3 1.6 10.8 60° 0.015 88 140
KB25OP 5 25

+0.011

-0.001

40 58

0

-0.30

44.1

0

-0.30

37.5 1.85 12.5 60° 100 160
KB30OP 5 30 47 68 52.1 44.5 1.85 15 60° 160 280
KB40OP 5 40

+0.013

-0.002

62

0

-0.013

80 60.6 59 2.15 20 60° 0.017 220 400
KB50OP 5 50 75 100 77.6 72 2.65 25 60° 390 810
KB60OP 5 60 90

0

-0.015

125

0

-0.40

101.7

0

-0.40

86.5 3.15 30 60° 0.020 480 1020
