1 SUPER LINEAR BEARING
SLM TYPE SKB TYPE SSW TYPE
1SKB TYPE
SLM SLM-OP

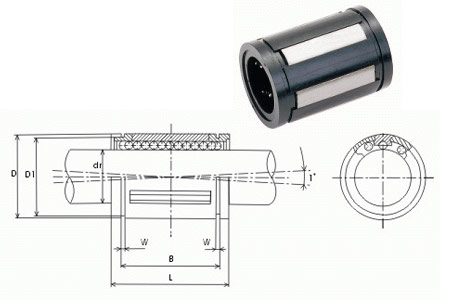

SKB TYPE
MODEL NO. NUMBER OF BALL MAIN DIMENSIONS CLEARANCE BASIC LOAD RATING
dr D L D1 B W
H7/g6
c(kgf)
co(kgf)
SKB10 5 10 19 29 18 21.7 1.35 +0.010-+0.040 77 56
SKB12 5 12 22 32 21 22.7 1.35 +0.011-+0.042 126 112
SKB16 5 16 26 36 24.9 24.7 1.35 153 128
SKB20 6 20 32 45 30.3 31.3 1.65 +0.012-+0.050 263 170
SKB25 6 25 40 58 37.5 43.8 1.90 388 281
SKB30 6 30 47 68 44.5 51.8 1.90 481 286
SKB40 6 40 62 80 59 60.4 2.20 +0.013-+0.055 663 584
SKB50 6 50 75 100 72 77.4 2.70 1169 810
