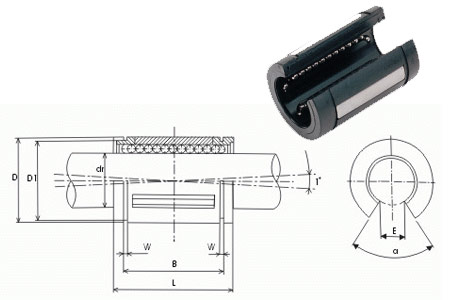

| MODEL
NO. |
NUMBER OF
BALL |
MAIN
DIMENSIONS |
CLEARANCE |
BASIC LOAD
RATING |
| dr |
D |
L |
D1 |
B |
W |
E |
|
H7/g6 |
c(kgf) |
co(kgf) |
| SLM16OP |
4 |
16 |
28 |
37 |
27 |
26.5 |
1.6 |
11 |
60° |
+0.011-+0.042 |
153 |
128 |
| SLM20OP |
5 |
20 |
32 |
42 |
30.5 |
30.5 |
1.6 |
11 |
60° |
+0.012-+0.050 |
263 |
170 |
| SLM25OP |
5 |
25 |
40 |
59 |
38 |
41 |
1.85 |
12.5 |
60° |
388 |
281 |
| SLM30OP |
5 |
30 |
45 |
64 |
43 |
44.5 |
1.85 |
14 |
60° |
481 |
286 |
| SLM40OP |
5 |
40 |
60 |
80 |
57 |
60.5 |
2.1 |
20 |
60° |
+0.013-+0.055 |
663 |
584 |
| SLM50OP |
5 |
50 |
80 |
100 |
76.5 |
74 |
2.6 |
25 |
60° |
1169 |
810 |
|
