1 SUPER LINEAR BEARING
SLM TYPE SKB TYPE SSW TYPE
1SSW TYPE
SLM SLM-OP

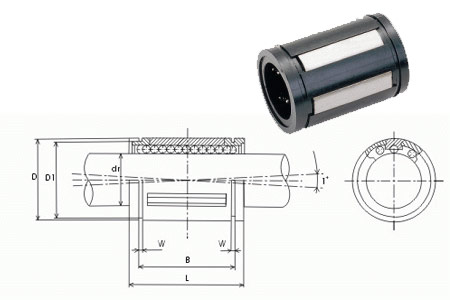

SSW TYPE
MODEL NO. NUMBER OF BALL MAIN DIMENSIONS CLEARANCE BASIC LOAD RATING
dr D L
B
D1 W
H7/h6
DYNAMIC
c(kgf)
STATIC
Co(kgf)
SSW4 3 1/4 ˝ 6.35 0.5 ˝ 12.7 0.75 ˝ 19.05 0.515˝ 13.081 0.4687 ˝ 11.905 0.039 ˝ 0.991 +0.011~+0.042 27 36
SSW6 4 3/8 ˝ 9.525 0.625 ˝ 15.875 0.875 ˝ 22.225 0.703˝ 17.856 0.588 ˝ 14.935 0.039 ˝ 0.991 +0.011~+0.042 43 54
SSW8 4 1/2 ˝ 12.7 0.875 ˝ 22.225 1.25 ˝ 31.75 1.032˝ 26.213 0.8209 ˝ 20.85 0.0459 ˝ 1.166 +0.011~+0.042 104 132
SSW10 4 5/8 ˝ 15.875 1.125 ˝ 28.575 1.5 ˝ 38.1 1.112˝ 28.245 1.059 ˝ 26.899 0.0559 ˝ 1.42 +0.011~+0.042 182 228
SSW12 4 3/4 ˝ 19.05 1.25 ˝ 31.75 1.625 ˝ 41.275 1.272˝ 32.309 1.176 ˝ 29.87 0.0559 ˝ 1.42 +0.012~+0.050 213 268
SSW16 5 1 ˝ 25.4 1.5625 ˝ 39.688 2.25 ˝ 57.15 1.886˝ 47.904 1.4687 ˝ 37.305 0.0679 ˝ 1.725 +0.012~+0.050 386 481
SSW20 5 1-1/4 ˝ 31.75 2 ˝ 50.8 2.625 ˝ 66.675 2.011˝ 51.079 1.8859 ˝ 47.9 0.0679˝ 1.725 +0.012~+0.050 558 695
SSW24 6 1-1/2 ˝ 38.1 2.375 ˝ 60.325 3 ˝ 76.2 2.422˝ 61.519 2.2389 ˝ 56.868 0.0859 ˝ 2.182 +0.013~+0.055 672 840
SSW32 6 2 ˝
50.8
3 ˝
76.2
4 ˝ 101.6 3.206˝ 81.432 2.8379 ˝ 72.083 0.1029 ˝ 2.614 +0.013~+0.055 1102 1377
