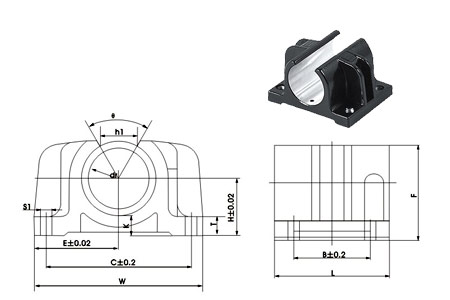

LINEAR CASE UNITS |
| |
|
| SWA-OP
TYPE |
|
|
|
| SWB-OP TYPE |
 |
| MODEL
NO. |
SHAFT
DIAMETER |
MAIN
DIMENSIONS |
MOUNTING
DIMENSIONS |
WEIGHT(kg) |
| B |
C |
S1 |
| H |
E |
W |
L |
F |
θ |
T |
h1 |
K |
| SWB8OP |
12.7 |
17.45 |
25.4 |
50.8 |
38.1 |
28.7 |
60° |
6.53 |
10.64 |
6.342 |
25.4 |
42.88 |
3.94 |
0.06 |
| SWB12OP |
19.05 |
23.8 |
34.92 |
69.85 |
47.6 |
39.7 |
60° |
7.87 |
15.87 |
7.925 |
31.75 |
60.325 |
4.75 |
0.135 |
| SWB16OP |
25.4 |
30.15 |
41.28 |
82.55 |
66.68 |
50.8 |
60° |
9.53 |
19.3 |
10.3 |
44.45 |
73.03 |
5.56 |
0.268 |
| SWB20OP |
31.75 |
38.1 |
50.8 |
101.6 |
85.73 |
63.5 |
60° |
11.88 |
24.2 |
12.705 |
50.8 |
88.9 |
5.56 |
0.536 |
| SWB24OP |
38.1 |
44.45 |
60.32 |
120.65 |
95.25 |
74.6 |
60° |
12.7 |
29.5 |
14.29 |
63.5 |
104.78 |
7.16 |
0.794 |
| SWB32OP |
50.8 |
53.97 |
76.2 |
152.4 |
120.65 |
92.07 |
60° |
15.8 |
37.3 |
15.88 |
82.55 |
133.35 |
1034 |
1.35 |
|
