| MODEL
NO. |
SHAFT
DIAMETER |

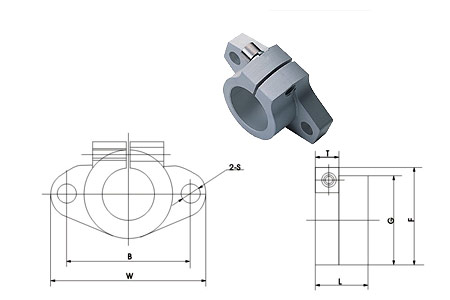

MAIN
DIMENSIONS |
DESIGNATION OF
CLAMPING BOLT |
DESIGNATION OF
MOUNTING BOLT |
WEIGHT(kg) |
| W |
L |
T |
F |
G |
B |
S |
| SHF10B |
10 |
43 |
10 |
8.5 |
24 |
20 |
32 |
5.5 |
M4 |
M5 |
0.013 |
| SHF12B |
12 |
47 |
13 |
8.5 |
28 |
25 |
36 |
5.5 |
M4 |
M5 |
0.020 |
| SHF13B |
13 |
47 |
13 |
8.5 |
28 |
25 |
36 |
5.5 |
M4 |
M5 |
0.020 |
| SHF16B |
16 |
50 |
16 |
8.5 |
31 |
28 |
40 |
5.5 |
M4 |
M5 |
0.027 |
| SHF20B |
20 |
60 |
20 |
9.0 |
37 |
34 |
48 |
7 |
M5 |
M6 |
0.040 |
| SHF25B |
25 |
70 |
25 |
11 |
42 |
40 |
56 |
7 |
M5 |
M6 |
0.060 |
| SHF30B |
30 |
80 |
30 |
14 |
50 |
46 |
64 |
9 |
M6 |
M8 |
0.110 |
| SHF35B |
35 |
92 |
35 |
16 |
58 |
50 |
72 |
12 |
M8 |
M10 |
0.380 |
| SHF40B |
40 |
102 |
40 |
22 |
67 |
56 |
80 |
12 |
M10 |
M10 |
0.510 |
|
