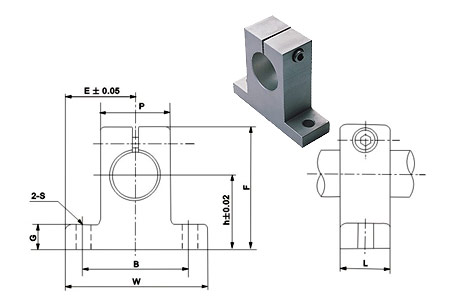

*LINEAR　BEARING *MINI TYPE BEARING *SUPER LINEAR BEARING *FLANGED LINEAR BEARING *LINEAR CASE UNITS *SHAFT SUPPORTS *SHAFT *SUPPORT RAIL UNIT *BALL SCREW *LINEAR MOTION GUIDE *OVERRUNNING CLUTCH *ROD END SHAFT SUPPORTS   SK TYPE SKW TYPE PA TYPE   SHF TYPE SHF-B TYPE SK TYPE MODEL NO. SHAFT DIAMETER MAIN DIMENSIONS DESIGNATION OF CLAMPING BOLT DESIGNATION OF MOUNTING BOLT WEIGHT(kg) h E W L F G P B S SK3 3 20 21 42 14 37.5 6 18 32 5.5 M4 M5 0.024 SK4 4 20 21 42 14 37.5 6 18 32 5.5 M4 M5 0.024 SK5 5 20 21 42 14 37.5 6 18 32 5.5 M4 M5 0.024 SK6 6 20 21 42 14 37.5 6 18 32 5.5 M4 M5 0.024 SK8 8 20 21 42 14 37.5 6 18 32 5.5 M4 M5 0.024 SK10 10 20 21 42 14 37.5 6 18 32 5.5 M4 M5 0.024 SK12 12 23 21 42 14 37.5 6 20 32 5.5 M4 M5 0.030 SK13 13 23 21 42 14 37.5 6 20 32 5.5 M4 M5 0.030 SK16 16 27 24 48 16 44 8 25 38 5.5 M5 M6 0.040 SK20 20 31 30 60 20 51 10 30 45 6.6 M6 M6 0.070 SK25 25 35 35 70 24 60 12 38 56 6.6 M6 M8 0.130 SK30 30 42 42 84 28 70 12 44 64 9 M8 M10 0.180 SK35 35 50 49 98 32 82 15 50 74 11 M8 M10 0.270 SK40 40 60 57 114 36 96 15 60 90 11 M10 M10 0.420 SK50 50 70 63 126 40 120 18 74 100 14 M12 M12 0.750 SK60 60 80 74 148 45 136 18 90 120 14 M12 M12 1.100
