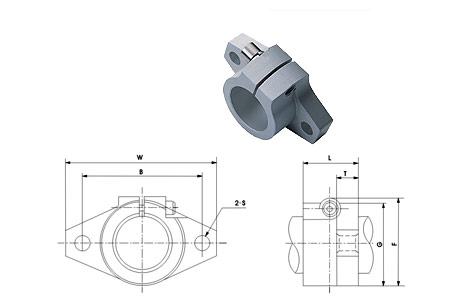

*LINEAR　BEARING *MINI TYPE BEARING *SUPER LINEAR BEARING *FLANGED LINEAR BEARING *LINEAR CASE UNITS *SHAFT SUPPORTS *SHAFT *SUPPORT RAIL UNIT *BALL SCREW *LINEAR MOTION GUIDE *OVERRUNNING CLUTCH *ROD END SHAFT SUPPORTS   SK TYPE SKW TYPE PA TYPE   SHF TYPE SHF-B TYPE SHF TYPE MODEL NO. SHAFT DIAMETER MAIN DIMENSIONS DESIGNATION OF CLAMPING BOLT DESIGNATION OF MOUNTING BOLT WEIGHT(kg) W L T F G B S SHF10 10 43 10 5 24 20 32 5.5 M4 M5 0.013 SHF12 12 47 13 7 28 25 36 5.5 M4 M5 0.020 SHF13 13 47 13 7 28 25 36 5.5 M4 M5 0.020 SHF16 16 50 16 8 31 28 40 5.5 M4 M5 0.027 SHF20 20 60 20 8 37 34 48 7 M5 M6 0.040 SHF25 25 70 25 10 42 40 56 7 M5 M6 0.060 SHF30 30 80 30 12 50 46 64 9 M6 M8 0.110 SHF35 35 92 35 14 58 50 72 12 M8 M10 0.380 SHF40 40 102 40 16 67 56 80 12 M10 M10 0.510 SHF50 50 122 50 19 83 70 96 14 M12 M12 0.890 SHF60 60 140 60 23 95 82 112 14 M12 M12 1.500
