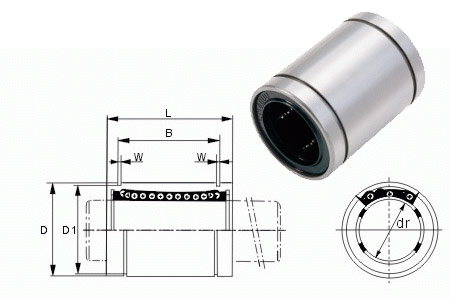

| MODEL
NO. |
NUMBER OF BALL |
MAIN
DIMENSIONS |
ECCEN-TRICITY |
BASIC LOAD
RATING |
| INSCRIBED CIRCLE |
OUTER DIAMETER |
LENGTH |
OUT LOCKING GROOVE |
W |
DYNAMIC
c(kgf) |
STATIC
Co(kgf) |
| dr |
TOLE-RANCE |
D |
TOLE-RANCE |
L |
TOLE-RANCE |
B |
TOLE-RANCE |
D1 |
| LMS10UU |
4 |
10 |
0
-0.009 |
19 |
0
-0.013 |
29 |
0
-0.20 |
22 |
0
-0.20 |
18 |
1.3 |
0.012 |
38 |
56 |
| LMS12UU |
4 |
12 |
21 |
30 |
23 |
20 |
1.3 |
42 |
61 |
| LMS13UU |
4 |
13 |
23 |
32 |
23 |
22 |
1.3 |
52 |
79 |
| LMS16UU |
4 |
16 |
28 |
37 |
26.5 |
27 |
1.6 |
79 |
120 |
| LMS20UU |
5 |
20 |
0
-0.010 |
32 |
0
-0.016 |
42 |
30.5 |
30.5 |
1.6 |
0.015 |
88 |
140 |
| LMS25UU |
6 |
25 |
40 |
59 |
0
-0.30 |
41 |
0
-0.30 |
38 |
1.85 |
100 |
160 |
| LMS30UU |
6 |
30 |
45 |
64 |
44.5 |
43 |
1.85 |
160 |
280 |
| LMS35UU |
6 |
35 |
0
-0.012 |
52 |
0
-0.019 |
70 |
49.5 |
49 |
2.1 |
0.02 |
170 |
320 |
| LMS40UU |
6 |
40 |
60 |
80 |
60.5 |
57 |
2.1 |
220 |
410 |
|
