1 LINEAR BEARING
LM TYPE KB TYPE SW TYPE
1LM TYPE
LM LM-AJ LM-OP LM-L
LM(m) LMS PLM

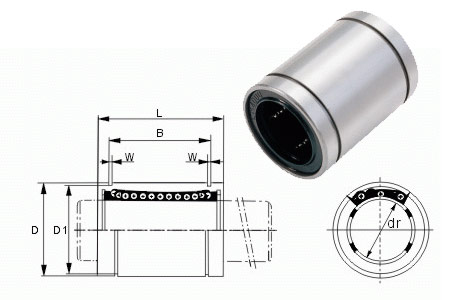

PLM TYPE
MODEL NO. NUMBER OF BALL MAIN DIMENSIONS ECCEN-TRICITY BASIC LOAD RATING
INSCRIBED CIRCLE OUTER DIAMETER LENGTH OUT LOCKING GROOVE W DYNAMIC
c(kgf)
STATIC
Co(kgf)
dr TOLE-RANCE D TOLE-RANCE L TOLE-RANCE B TOLE-RANCE D1
LM04UU 4 4

0

-0.008

8

0

-0.009

12

0

-0.12

0.008 9 13
LM05UU 4 5 10 15 10.2

0

-0.20

9.6 1.1 17 21
LM6UU 4 6

0

-0.009

12

0

-0.011

17

0

-0.20

13.5 11.5 1.1 0.012 21 27
LM8SUU 4 8 15 19 11.5 14.3 1.1 18 23
LM8UU 4 8 15 24 17.5 14.3 1.1 27 41
LM10UU 4 10 19

0

-0.013

29 22 18 1.3 38 56
LM12UU 4 12 21 30 23 20 1.3 42 61
LM13UU 4 13 23 32 23 22 1.3 52 79
LM16UU 5 16 28 37 26.5 27 1.6 79 120
LM20UU 5 20

0

-0.010

32

0

-0.016

42 30.5 30.5 1.6 0.015 88 140
LM25UU 6 25 40 59

0

-0.30

41

0

-0.30

38 1.85 100 160
LM30UU 6 30 45 64 44.5 43 1.85 160 280
LM35UU 6 35

0

-0.012

52

0

-0.019

70 49.5 49 2.1 0.02 170 320
LM40UU 6 40 60 80 60.5 57 2.1 220 410
LM50UU 6 50 80 100 74 76.5 2.6 390 810
LM60UU 6 60

0

-0.015

90

0

-0.022

110 85 86.5 3.15 0.025 480 1020
